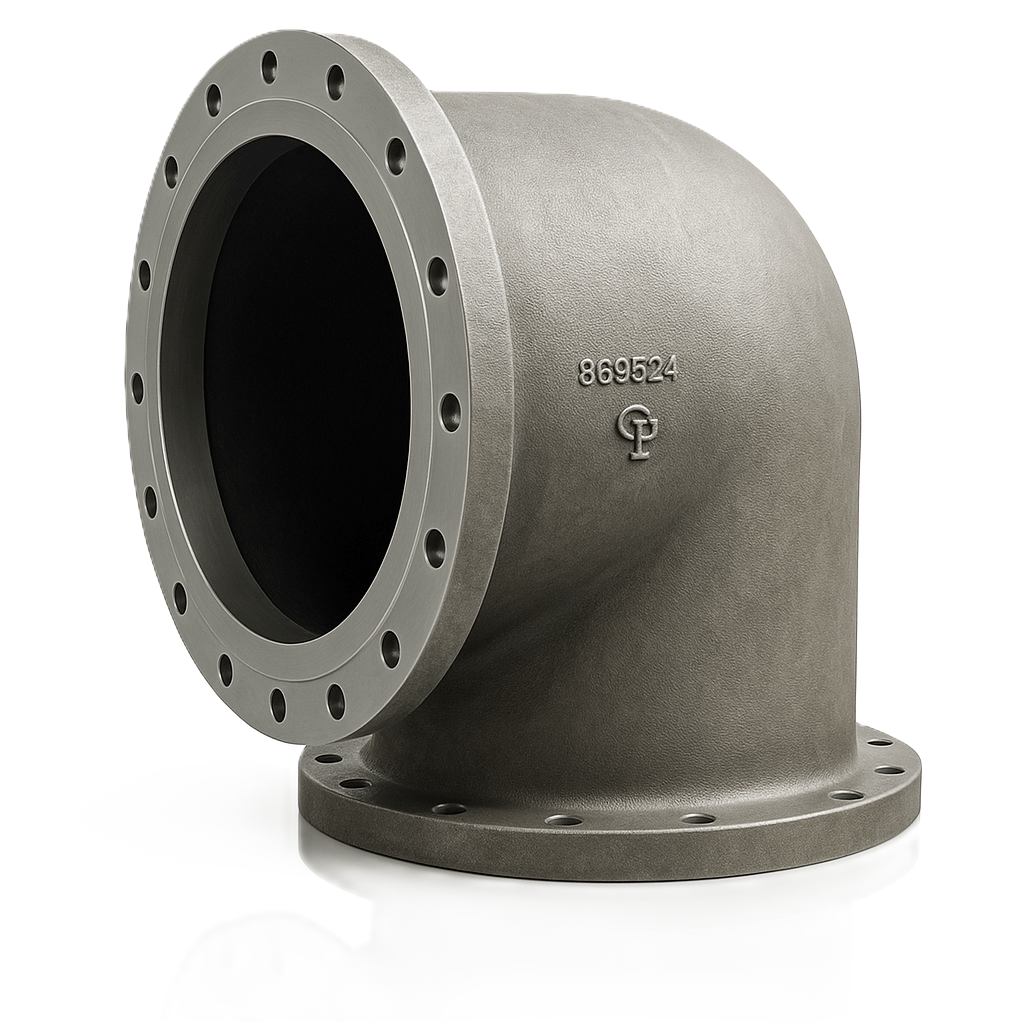

Angled Pipe Housing
A robust 90° connector enclosure used in GIS systems for directional routing of conductors or busbars. Its dual-flange design ensures a secure, pressure-tight interface between perpendicular housing sections, with smooth internal flow paths and precision sealing faces.
APPLICATIONS
Elbow connector for high-voltage GIS power distribution systems
SPECIFICATIONS
- Material – AlSi7Mg Aluminium Alloy
- Weight – 34 Kg
- Gravity Die Cast
- Precision-machined flanges and bolt interfaces
FEATURES
- Excellent mechanical strength for GIS applications
- High corrosion resistance for extended service life
- Accurate flange alignment for leak-free sealing
- Smooth internal surface for efficient gas flow
